DIAMOND WIRE SAWS
Takatori diamond wire saws are the industry standard for slicing sapphire and other advanced materials. Featuring high wire speeds and the original rocking head, Takatori diamond wire saws offer high-speed slicing of even the hardest materials with top notch quality.
| Machine | Work size (WxHxL) | Wire speed | Max tension | Machine size (WxHxL) |
|---|---|---|---|---|
| MWS-612DD | Ф150 x 300 | 700 | 35N | 1,954x2,745x2,632mm |
| MWS-612DN | Ф150 x 300 | 1,200 | 50N | 1,900x2,600x2,600mm |
| MWS-620DD | Ф150 x 500 | 1,500 | 50N | 1,870x2,480x3,490mm |
MWS-612DD:
Designed for running diamond wire only. It is a popular choice for companies producing sapphire and other challenging materials. Maximum ingot length is 300mm.
MWS-612DN:
Further upgraded mass-produced type of MWS-612DD, supported as the industry standard for slicing sapphire. Reduces the number of pulleys for lower COO.

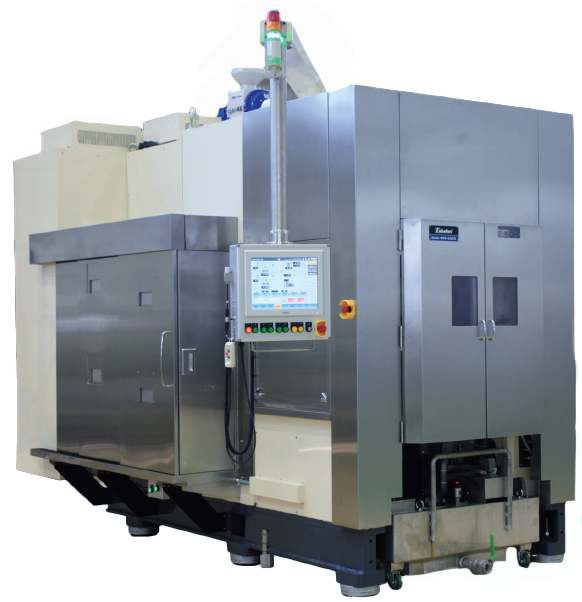

MWS-620DD:
This machine will enhance productivity with increased cutting length of up to 500mm.
